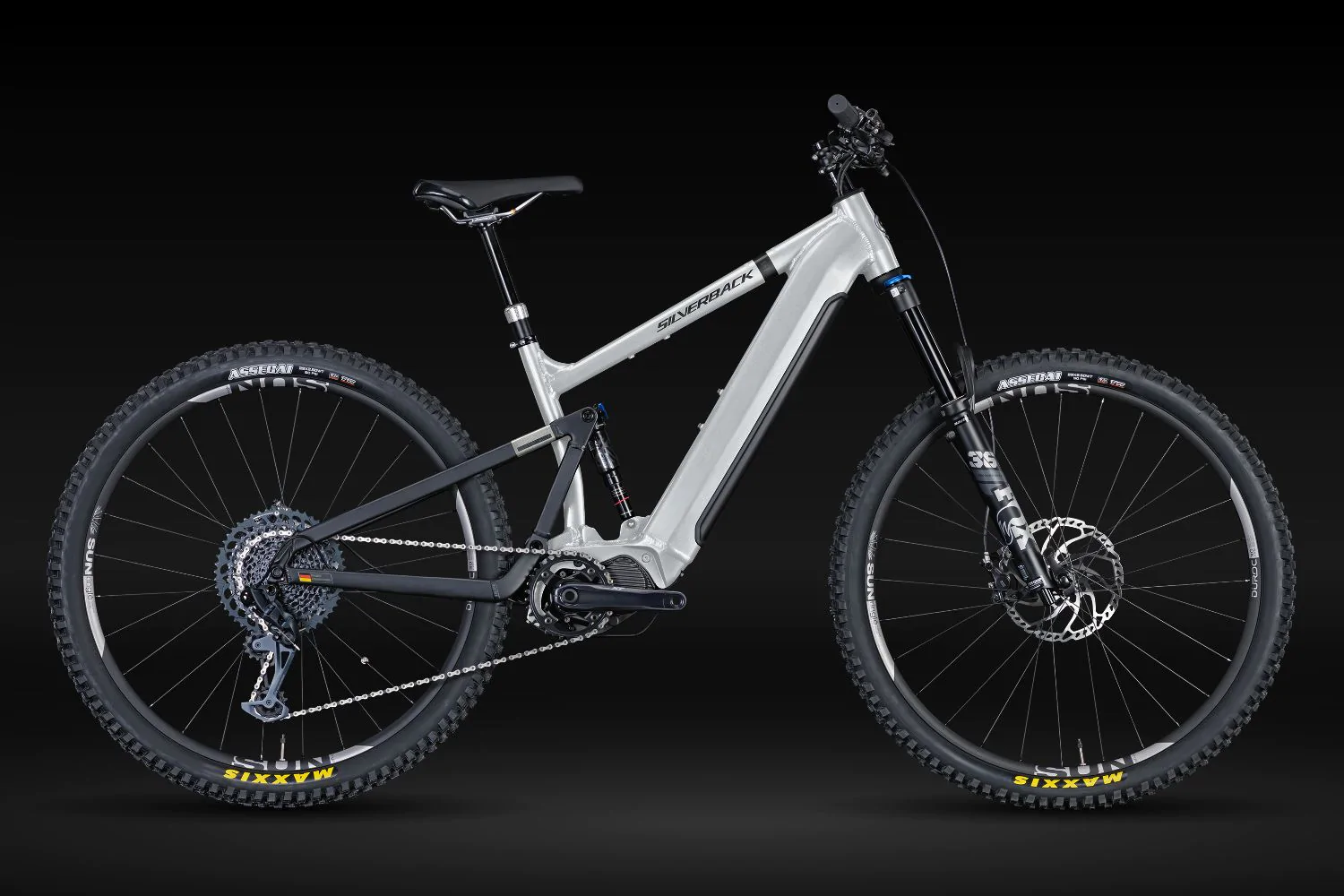

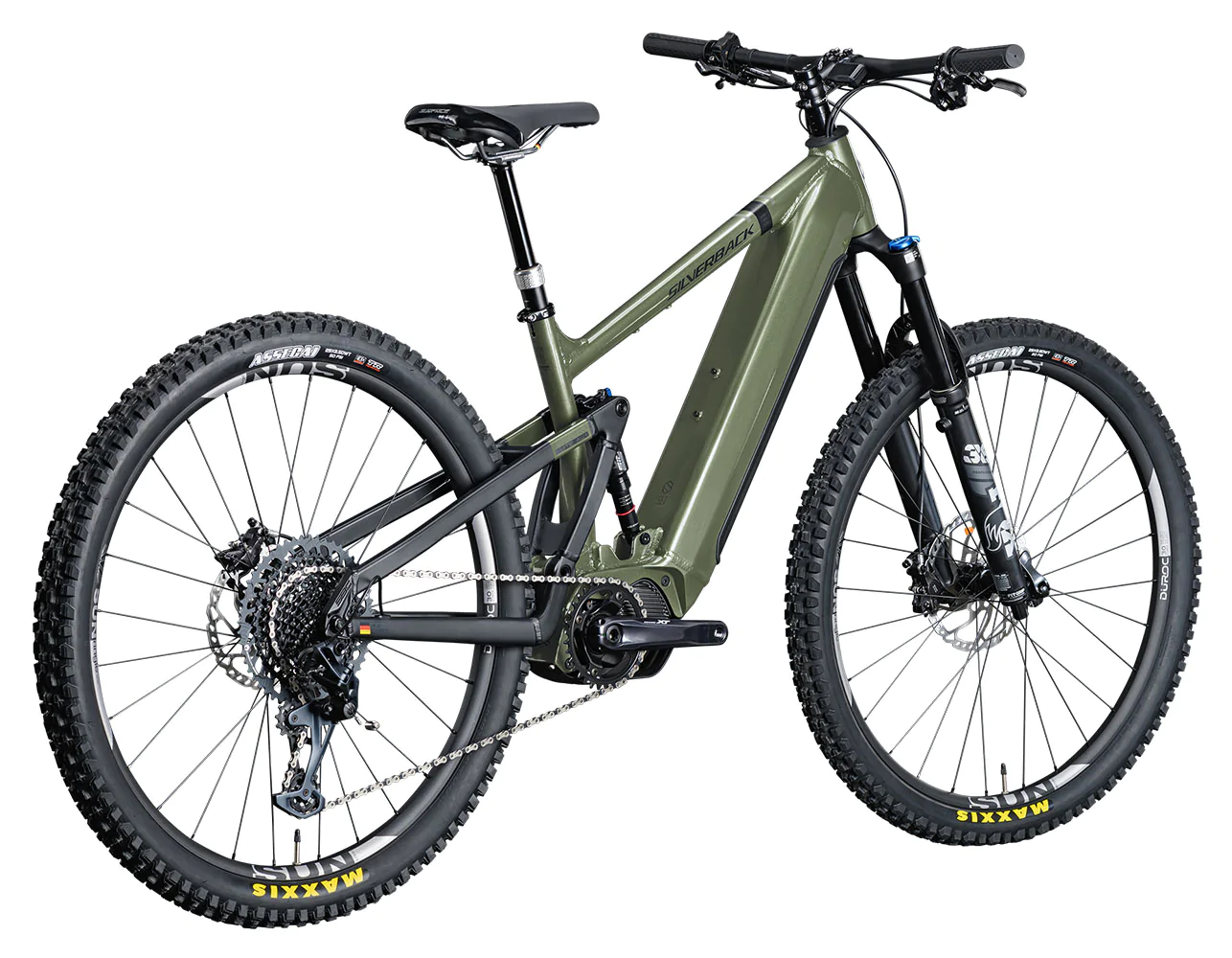

Silverback ELITE AL 1

SPECIFICATIONS.
FRAMESET
Frame
Alloy Dual Suspension for Shimano EP8 and Darfon 720Wh battery. Trail/Enduro Bike with 140mm progressive frame travel. Designed to be light, nimble and easy to maintain.

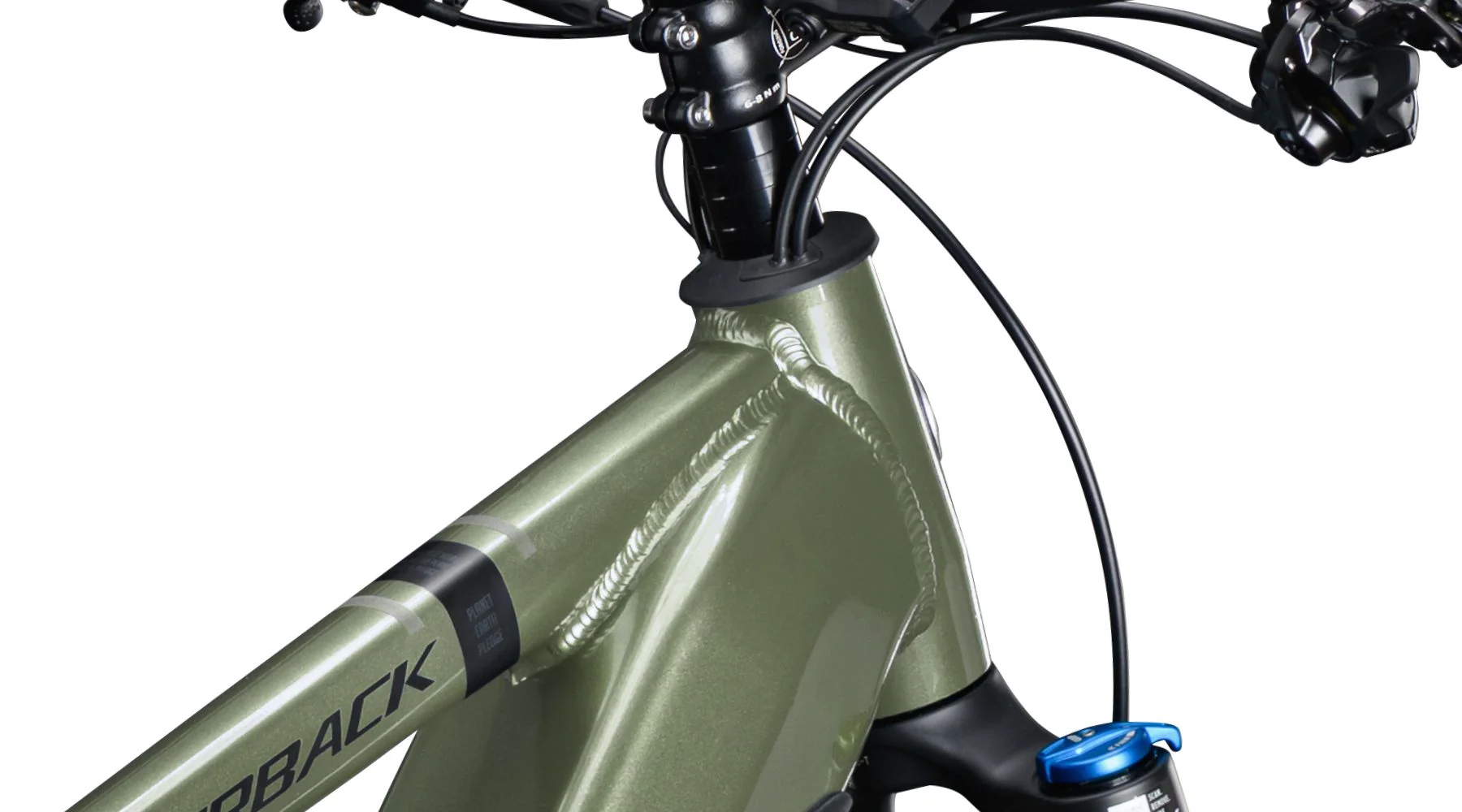

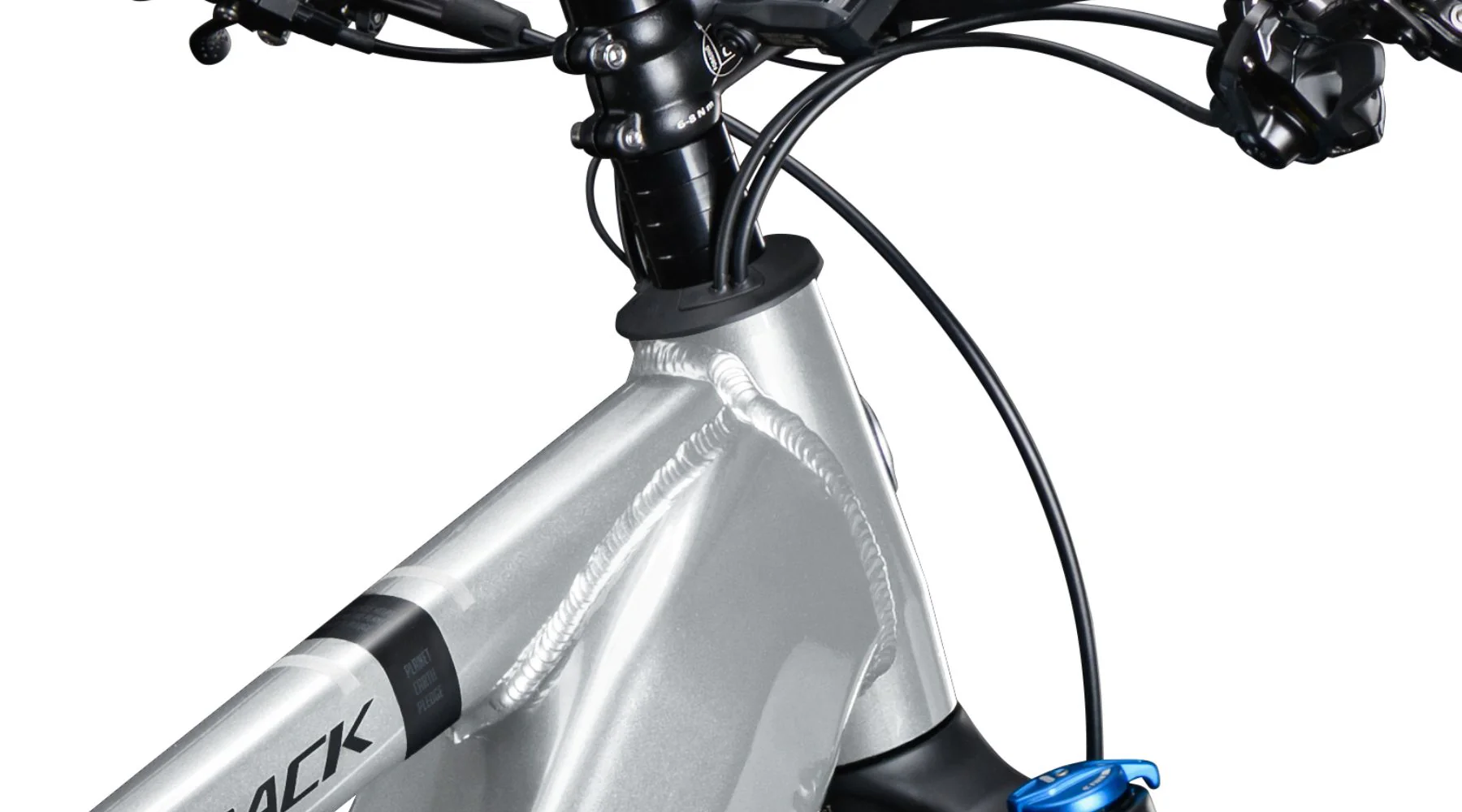

Headset
TOKEN TK1156SP S-Box Headset (IS52/28.6 l IS52/40)

Frame Axle Spacing
148x12mm

Axle Specification
181x12mm P1.75

Hanger Type
Hanger 03

E-BIKE

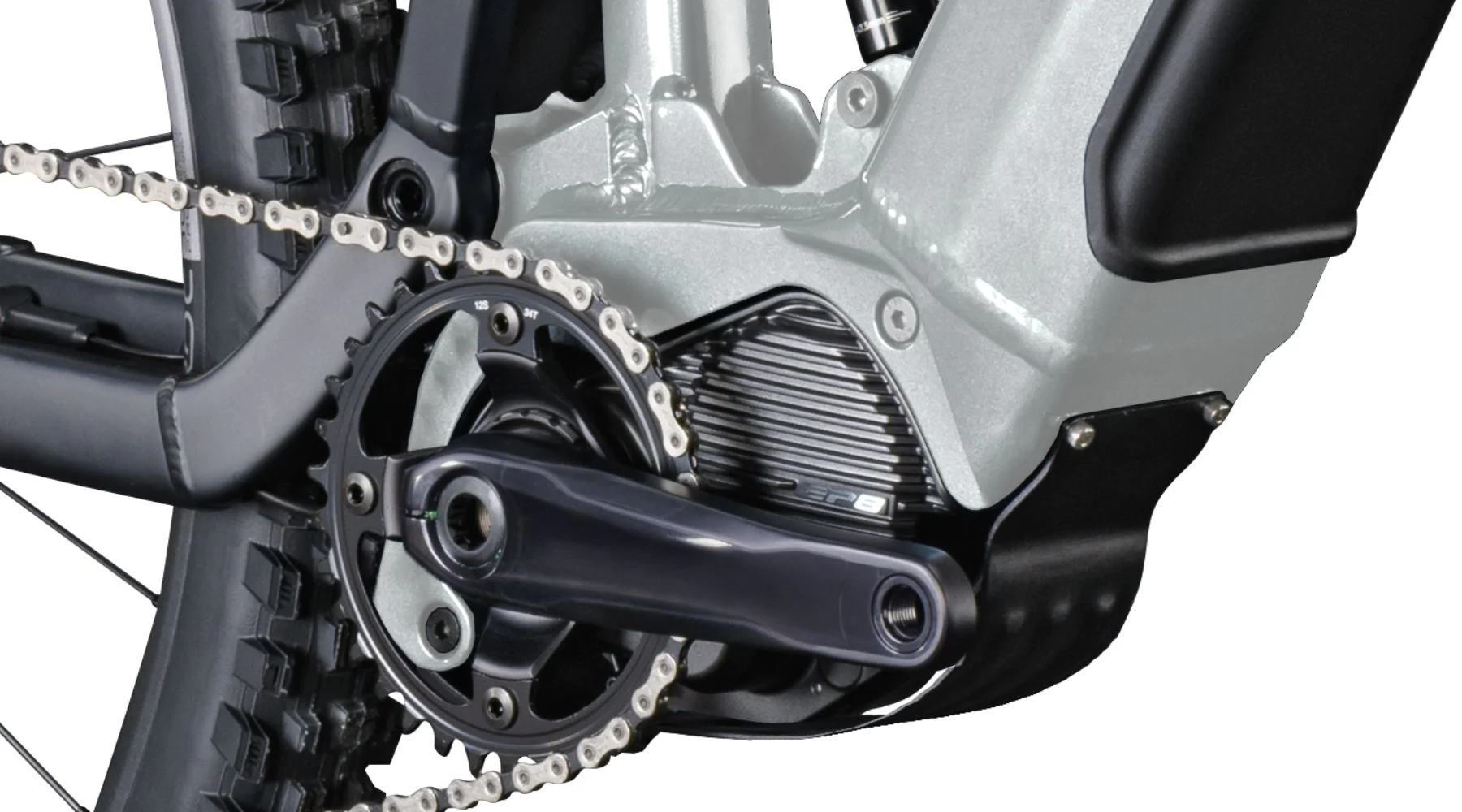

Motor
Shimano EP8 Drive Unit, 25km/h, 85N.m Torque

Battery
Li-Ion, 720Wh, 36V, 20Ah, 3.8Kg Weight

Charger
Darfon Smart Plus, 100-240V, 4A, EU use

Display
Shimano EM800 Cycle Computer

Switch
Shimano EM800, Left

SUSPENSION
Fork
Fox Performance 36 Float, GRIP, 150mm, 44mm Offset, Air

Fork Travel
150mm

Rear Shock
RockShox Deluxe Ultimate RCT, 3 Position

Rear Travel
140mm

Shock Mounting
Body: Trunnion, M10x54mm Shaft: Standard, 8x30mm

Eye-to-Eye x Stroke
185x55mm

WEIGHT
Bike Weight

RIDER WEIGHT LIMIT
120kg – combined weight of bike and rider (including all kit).

WHEELS
Wheelset
SUNringlé Custom Wheelset

Hubs
F: SUNringlé SRC 110x15mm, 6 Bolt;

R: SUNringlé SRC 148x12mm, 6 Bolt

Rims
F: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

R: SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width

Tyres
F: Maxxis Assegai 29×2.5WT, 120TPI, 3C Maxxgrip, DoubleDown

R: Maxxis Minion DHRII 29×2.4WT, 120TPI, 3C, DoubleDown

Max Tyre Size
2.5″

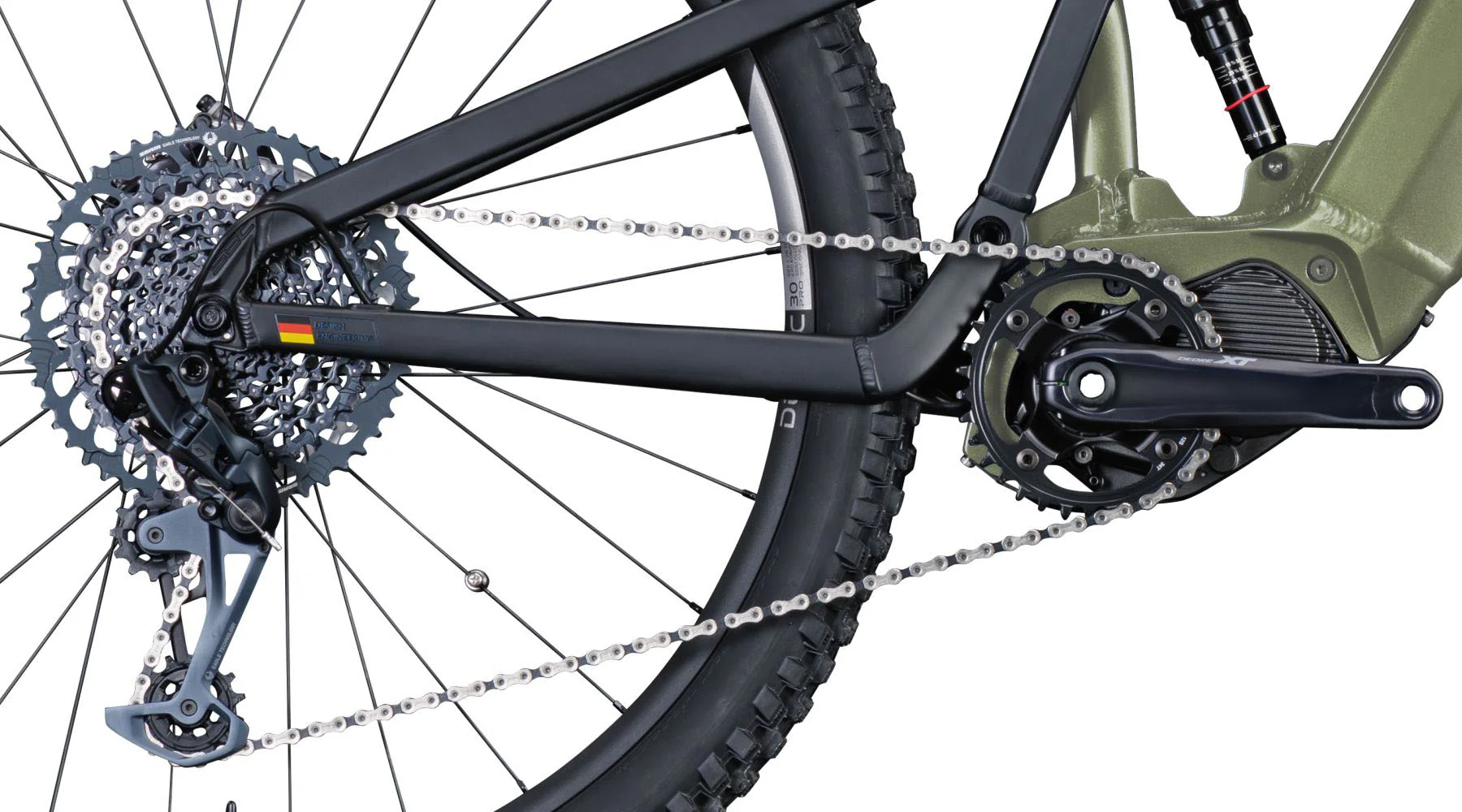

DRIVETRAIN
Crankset
Shimano FC-EM600

Max Chainring Size
38T

Shifter(s)
R: SRAM GX Eagle Lunar

Rear Derailleur
SRAM GX Eagle Lunar

Cassette
SRAM GX Eagle 10-52T

Chain
SRAM GX EAGLE, Power Lock 12 Speed

BRAKES
Brakes
F: Shimano deore  MT 410

R: Shimano deore MT 410

Rotors
F:  CENTERLINE SLX RT70 203mm

R: CENTERLINE SLX RT70 180mm

COCKPIT
Grips
Double Density Lock-On Grips

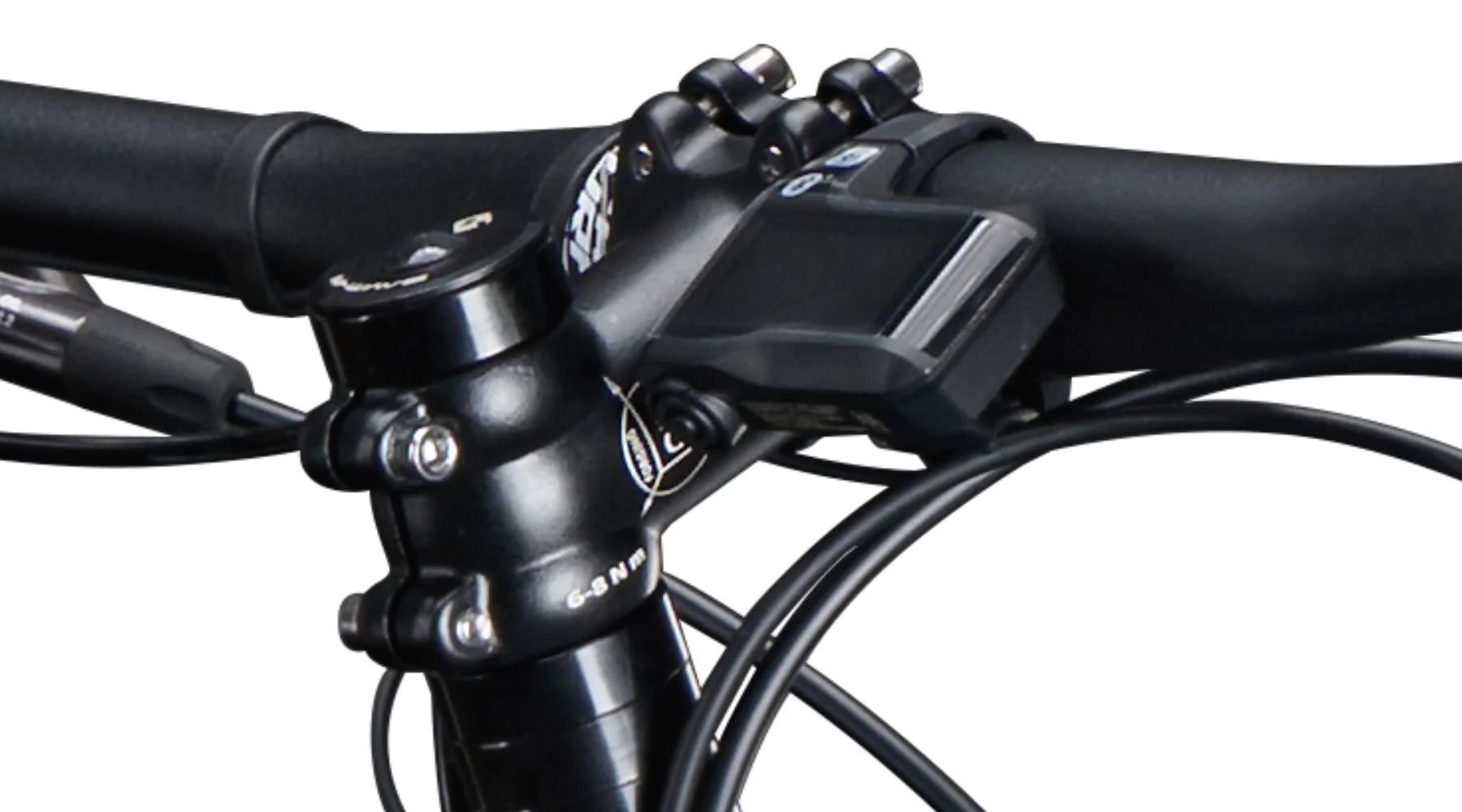

Handlebar
SURFACE Trail 35mm Handlebar, Backsweep 6°, Rise 12mm

Stem
SURFACE Trail Stem, 35mm, Rise 7°

Saddle
SURFACE

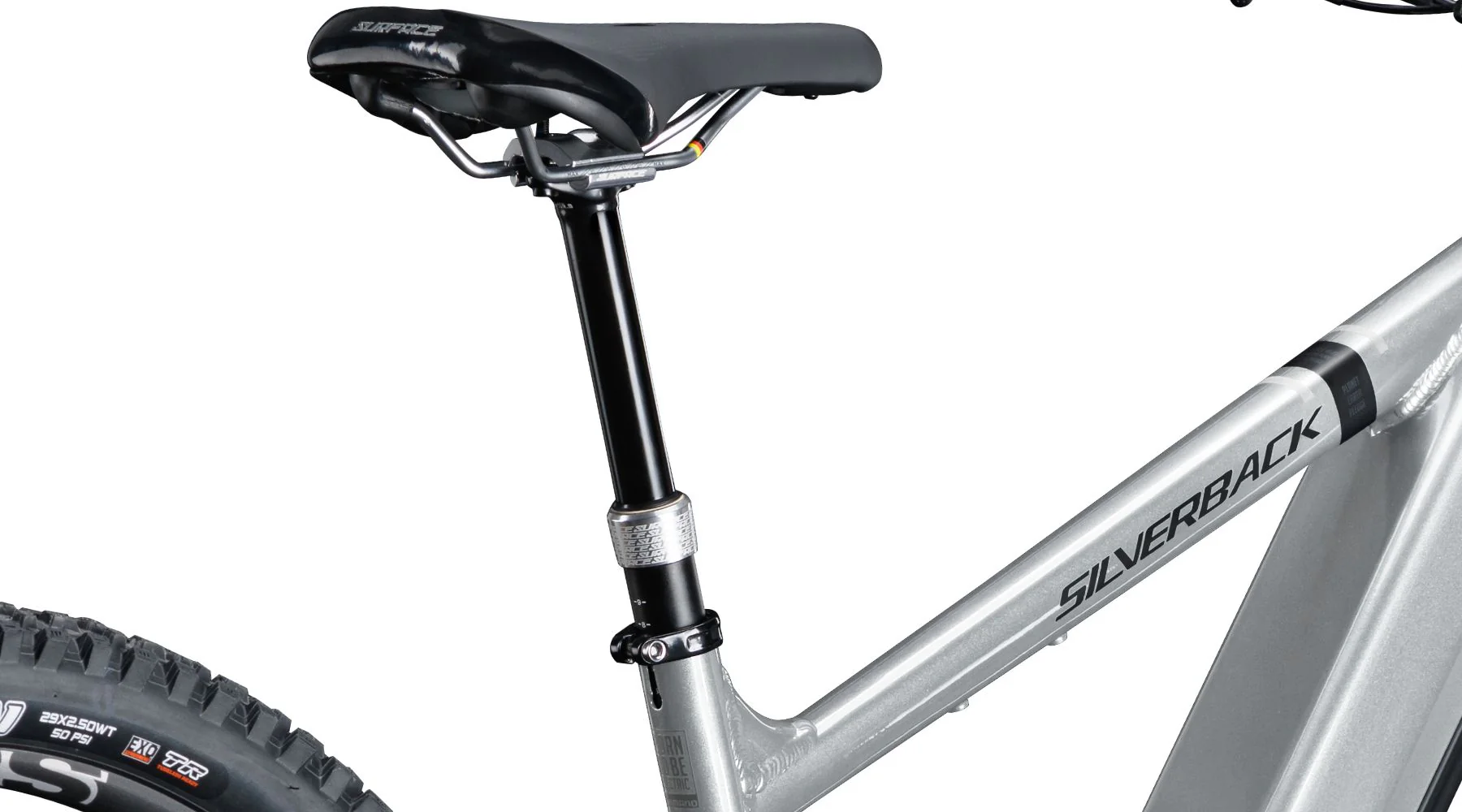

Seat Post
SURFACE Dropper Post with Lever, 30.9mm

Seatpost Clamp
SURFACE Alloy
