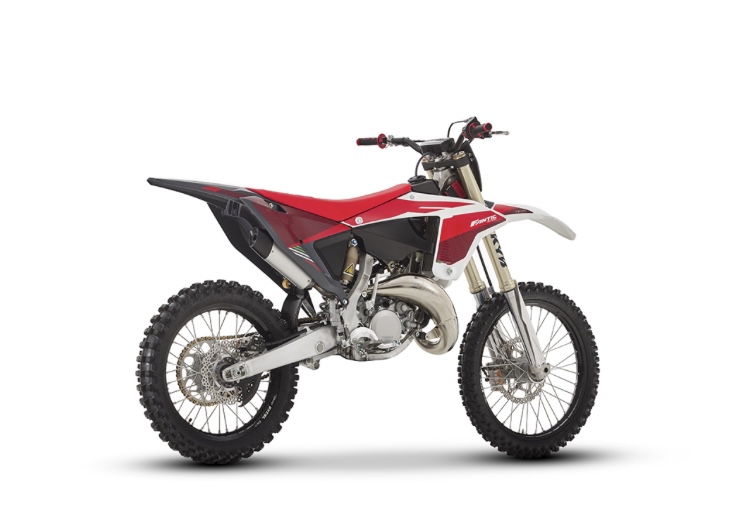

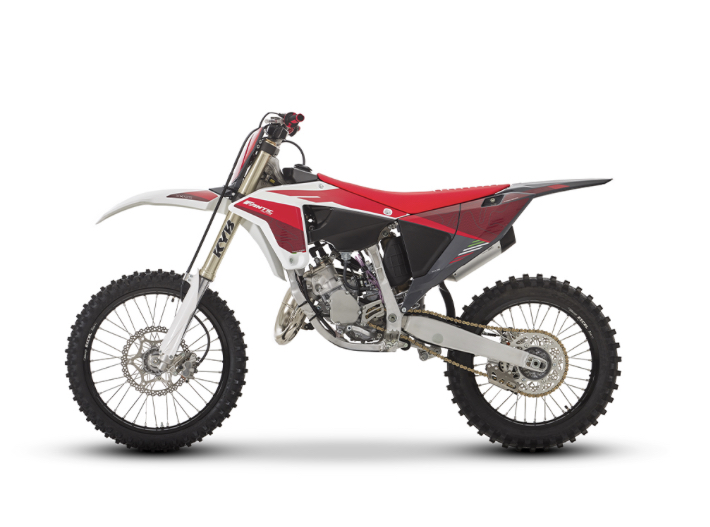

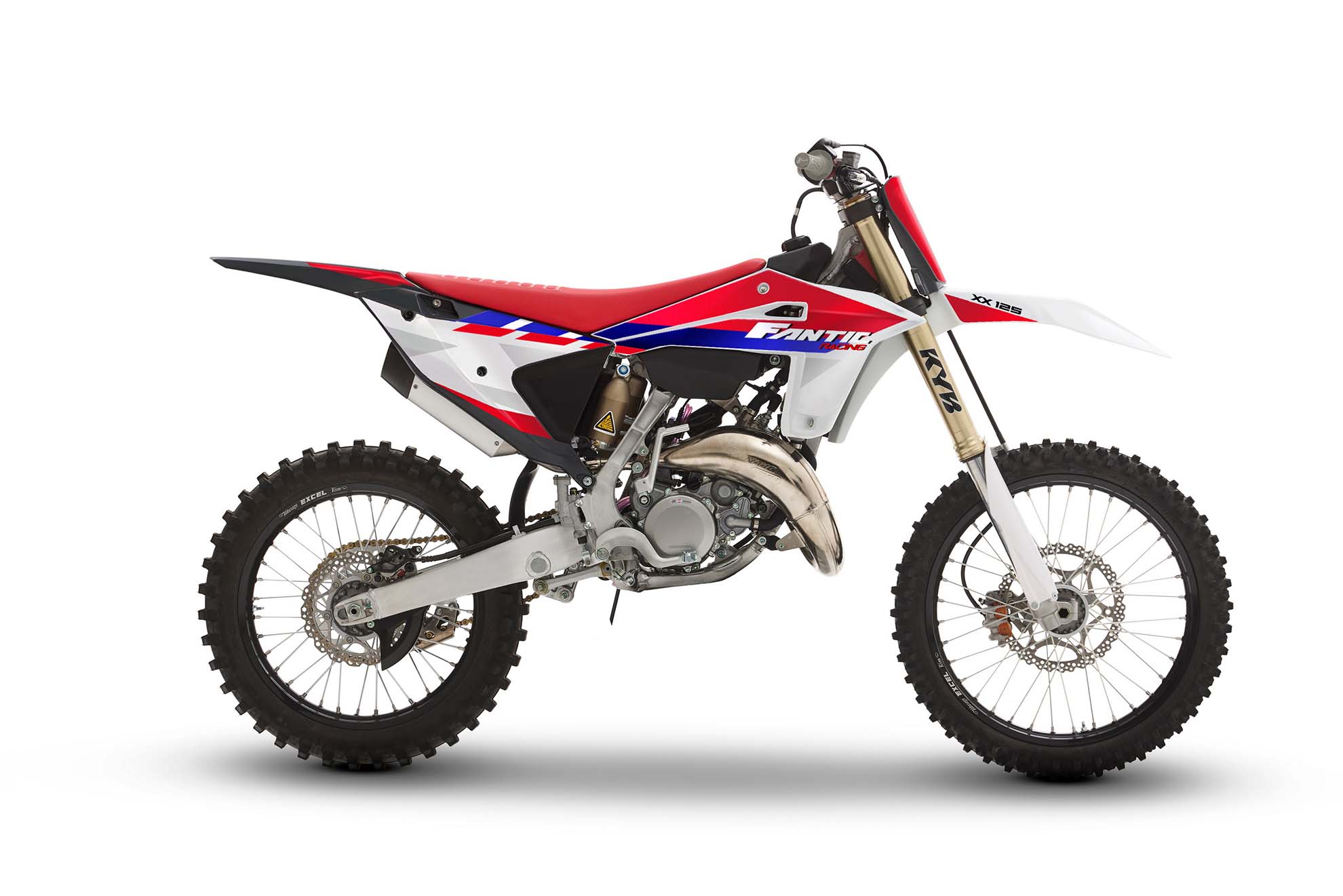

Fantic XX 125

Power and responsiveness

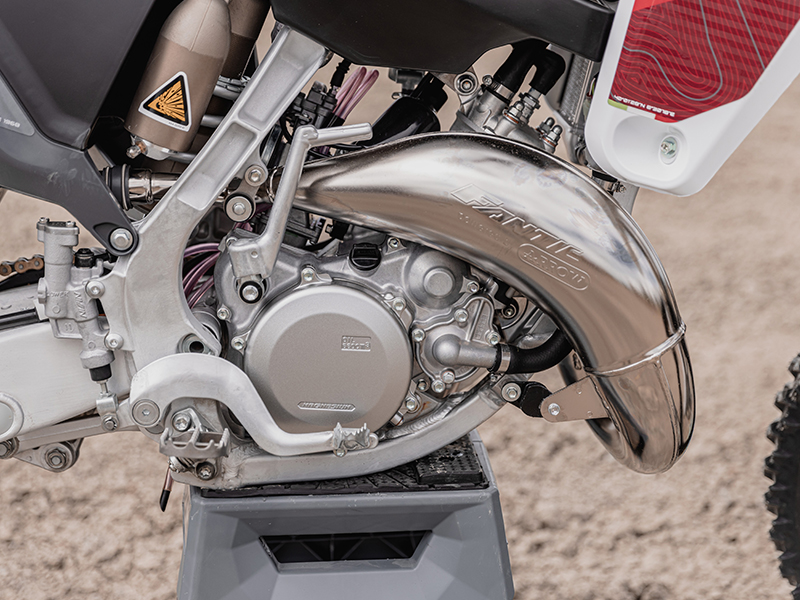

The small but ultra-performance 125cc 2-stroke engine needs no introduction, apart from knowing it’s the Junior 2021 Champion. Thanks to intense research and meticulous work on the cylinder, piston and connecting rod, our 125 has never been so powerful and enjoyable to ride. The cherry on the cake is the Kehin 38mm carburettor which, thanks to a solenoid-controlled power jet, further enhances performance when it’s needed on the track.

Not only tool

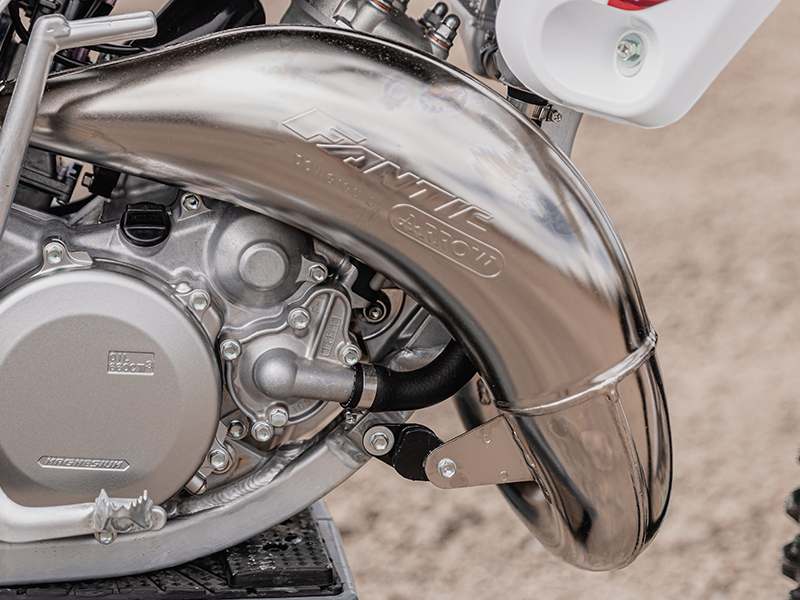

A fantastic chrome-plated expansion pipe will tell the world loud and clear about the wonders of two-stroke. Our R&D department worked hard on a component that’s key to performance and designed specifically for high-level MX use. Thanks to the cast aluminium silencer, we also ensure compliance with FIM regulations.

Only race matters

But how cool is it to change a filter one-handed? No tools required, and ready to go again in a few seconds. What really counts is time on the seat, not pitstops. So simple, it rhymes with performance. Following careful flow analysis and trial runs with our riders, the Fantic engineers chose an optimised sizing for maximum performance. The new design also guarantees minimum impurities, so only fresh air enters the TwinAir filter.

Keep the focus

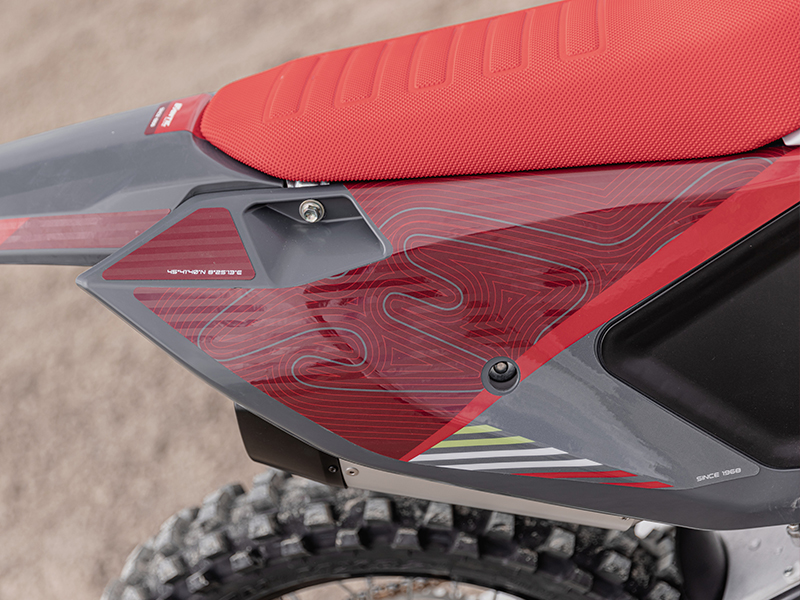

We want you to stay focused and alert from the first lap to the last. This is why we worked with the Factory Team to develop special slimline plastics, without obstructions and perfectly contoured to give you maximum comfort, freedom and riding position.

An unrivalled package

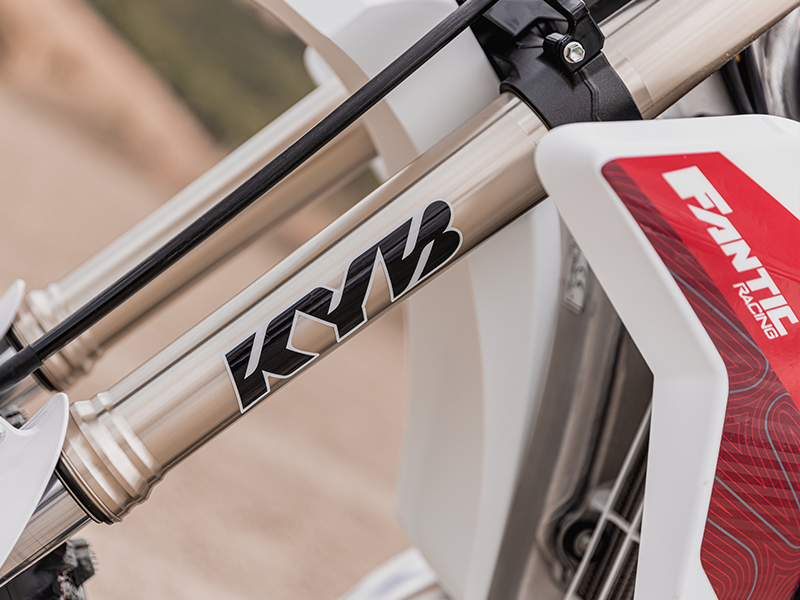

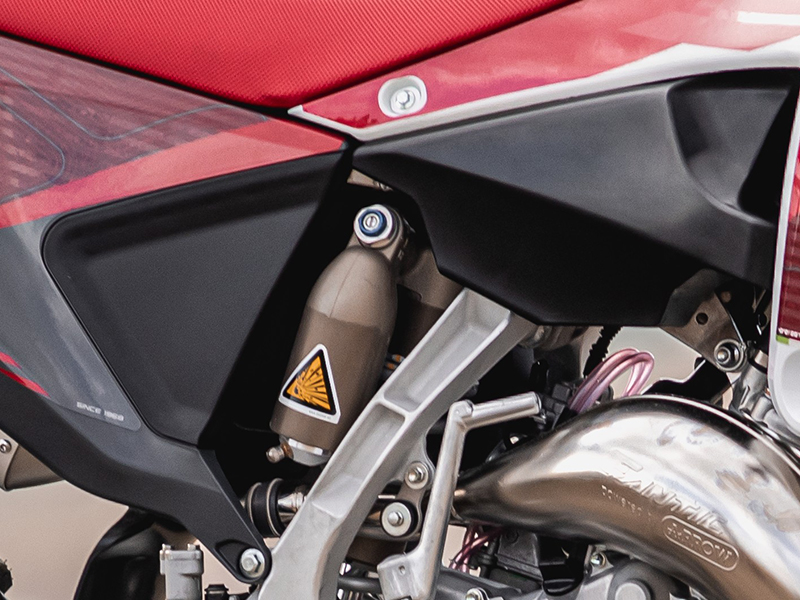

The XX125 boasts the most competitive frame and suspension in its class. An exceptionally precise high-tech semi-double cradle frame in aluminium for optimum rigidity and lightness, weighing just 8 kg. How does it feel to ride? Maximum precision and responsiveness for top performance in any conditions. Kayaba suspension has been the benchmark for off-road bikes for years and needs no introduction. The Kayaba SSS (Speed Sensitive System) 48mm closed cartridge pressurised forks have 300mm of travel and are fully adjustable for pre-load, extension and compression. Perfect adaptation for any level of riding, from beginner to race professional. The mono shock absorber is also Kayaba, with 315mm wheel travel.

As you want me

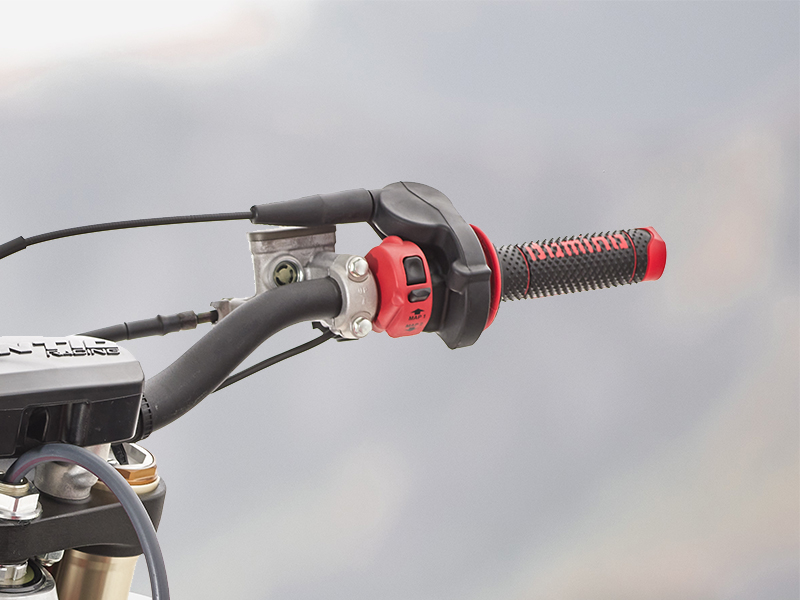

How’s the track today? Wet sand? Perfectly packed dirt? No problem. The XX125 comes with two engine mapping settings accessed from the handlebars. The Soft Mapping delays ignition timing, giving a more gentle delivery and is recommended for a more treacherous terrain, for a bike that’s always responsive and manageable, without sacrificing the adrenaline rush of maximum power.

Tekniset tiedot

Moottori:
Type: Single-cylinder 2-strokes wtih intake reed valve and exhaust YPVS
Displacement: 125 cc
Carburetor: Keihin PWK38S/1
Bore: 54 mm
Stroke: 54.5 mm
Compression ratio: 8.2 ~ 10.1 :1
Ignition system: CDI
Starting system: Kickstarter
Lubrication system: Premix
Trasmission: 6-speed
Clutch: Wet, multiple-disc

Runko:
Frame type: Aluminum semi double cradle
Caster angle: 26°
Trail: 109 mm
Rear frame: Alluminum
Swingarm: Aluminum with variable section and progressive link
Rims: 21×1.60 – 19×1.85
Tyres: 80/100×21 – 100/90×19
Brakes: Hydraulic disc ø270mm – Hydraulic disc ø240mm
Front suspension: KYB ø48 mm, fully adjustable, wheel travel 300 mm
Rear suspension: KYB, fully adjustable, wheel travel 315 mm

Mitat:
Length: 2135 mm
Width: 825 mm
Height: 1295 mm
Seat height: 975 mm
Wheelbase: 1440 mm
Kerb weight: 90 kg
Fuel tank capacity: 8.0 l
Engine oil quantity: 0.7 l
